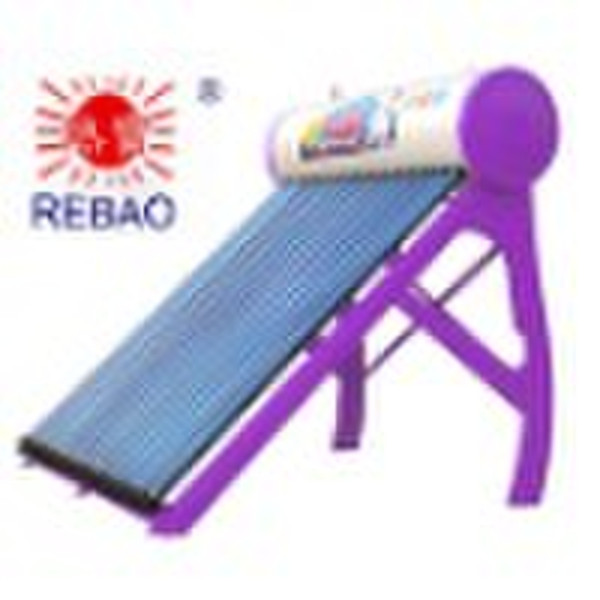

Non pressure solar water heater
original price: 99,00 USD
x j
Contact person
Basic Information
| Certification | CE |
|---|---|
| Capacity | 200 |
| Place of Origin | Jiangsu China (Mainland) |
| Brand Name | Rebao |
| Model Number | RB-6028 |
| Type | Evacuated Tube |
| Pressure | Unpressurized |
| Circulation Type | Direct / Open Loop (Active) |
| Heating System | Thermosyphon (Passive) |
| Connection Type | Direct-Plug |
The detailed information for our Non pressure solar water heater: Evacuated solar collector tube:Made of high-borosilicate glass,with aluminum absorption layer of magnetron sputtering Specification:47-1500mm 58-1800mm Storage tanks:SUS304-2B imported food-grade stainless steel Outer tank material:Stainless Steel Thickness of insulation layer:55-65mm and made through the computerized pressurizing and foaming of polyurethane as a whole Bracket materials:molded of high-strength galvanized sheet and electrostatic plastic-sprayed Fasteners:stainless steel screws Sealing ring:polymer 5silicone rubber Reflective angle:45° Heat pipe material:copper Absorption rate:≥0.95±0.02 Emission rate:≤0.20±0.02 Vacuum tightness:P≤5.0*0.0001Pa Idle sunny property paramerers:Y=220-260./KW Average Heat Loss:Ult=0.6-0.7W(.) It means the temperature in the water tank is arange from 50 to 95 degree. It resist 25mm hail and the using life can last 15 years. Please test the water temeperature before using,in order to avoid scalding. Instruction:CD and brochures to show you how to install it. Certificates:Pass CE,ISO,CCC and patent certificates. OEM Services provided! SPECIFICATION EFFECTIVE LIGHT AREA (M) QTY.(SETS) DIAMETER OF SOLAR TUBE(MM) QTY. OF SOLAR TUBES TANKS CAPACITY (L) 204040HQ Φ47X150015901.4859128161 Φ47X1500181081.6752113141 Φ47X1500201201.8548103130 Φ58X1800151252.14393117 Φ58X1800181502.513679100 Φ58X1800 201652.92347393 Φ58X1800242003.52285777Φ58X1800302504.2235064
Delivery terms and packaging
Packaging Detail: Samples in wooden casesLarge amount in usual package Delivery Detail: 15 days for samples
Port: Shanghai
